YL-504-2022

Feature

  • Stop, tail, indicator, takedown and alley modules are available

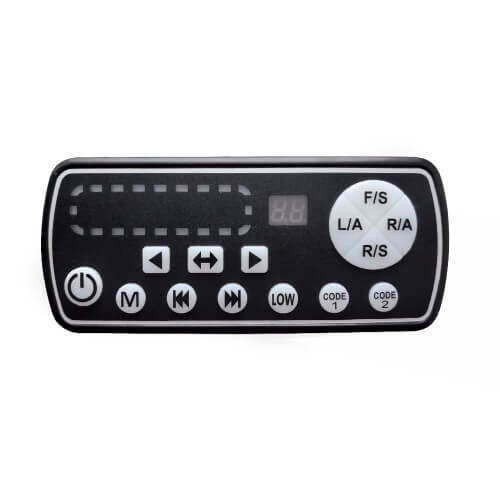

  • With YL-D003 controller and YL-C003 bracket
  • Optional for YL-D001/YL-D002 controller and YL-C001/YL-C002 bracket
  • Tough polycarbonate lens with UV resistant
  • Reverse polarity protection
  • With memory function
    • Consult
    Specifications
    spare-parts
    downloads

    • Model name

      YL-504-2022

    • Approval

      ECE R65 TA2/TB2/TR1, ECE R10, CE, UKCA; Meets SAE J845 Class 1 and CISPR 25 Class 3

    • Operating Voltage

      DC 12-24V

    • Power

      180LED*1.5W (single color); 360LED*1.5W (dual color)

    • Color

      Single / Dual color

    • Color available

      Amber, Blue, Red, Green, White

    • Lens color available

      Clear, Amber, Blue, Red

    • Flash patterns

      29

    • Mounting options

      Bracket mount

    • Lens material

      PC

    • Base material

      Aluminum

    • IP rating

      IP65

    • Working temperature

      -30°C to +60°C

    • Length options (inch)

      34'' (852mm), 46'' (1172mm), 59'' (1492mm), 71'' (1812mm), 84'' (2133mm)

    • Warranty

      3 years
