YL-710-3

Feature

  • Tough polycarbonate lens with UV resistant
  • Aluminum base with heat dissipation
  • Reverse polarity protection
  • With memory function
  • Multiple units can be synchronized or alternate
  • Excellent water ingress protection standard IP67, IP69K
    • Consult
    Specifications
    spare-parts
    downloads

    • Model name

      YL-710-3

    • Approval

      ECE R65 Class 1,SAE J595 Class 1,ECE R10, CE, UKCA; Meets CISPR 25 Class 3

    • Operating Voltage

      DC 12-24V

    • Power

      3LED*3W

    • Color

      Single color

    • Color available

      Amber, Blue, Red, Green, White, Magenta

    • Flash patterns

      26

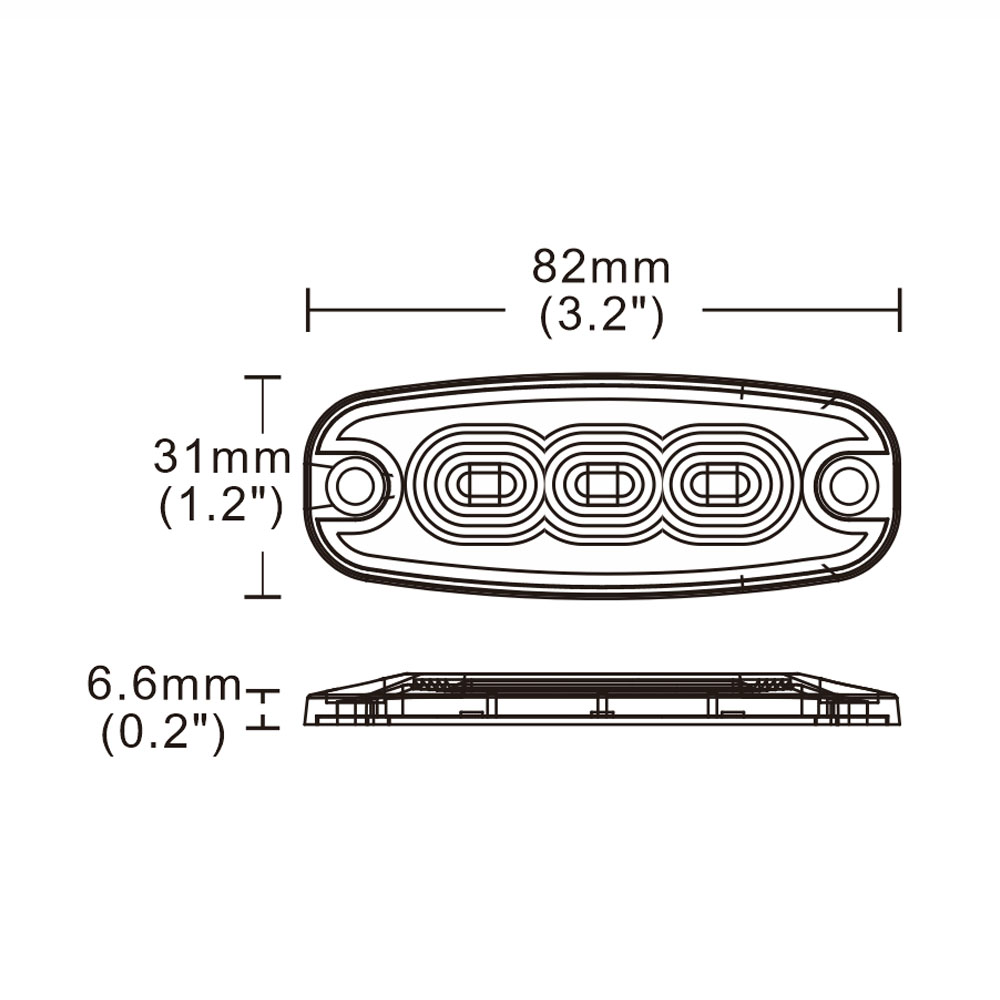

    • Dimension (L*W*H mm)

      82*31*6.6

    • Mounting

      bolts or self-adhesion or bracket

    • Lens material

      PC

    • Base material

      Aluminum

    • IP rating

      IP67, IP69K

    • Working temperature

      -30°C to +60°C

    • Warranty

      3 years
